UI_Video

VidScorer

Tag video frames with metadata and synchronize videos with electrophysiologic data.

Tutorial

See set-up

Video Alignment

Open the video scoring GUI

nigeLab.libs.VidScorer(blockObj.Cameras(1))

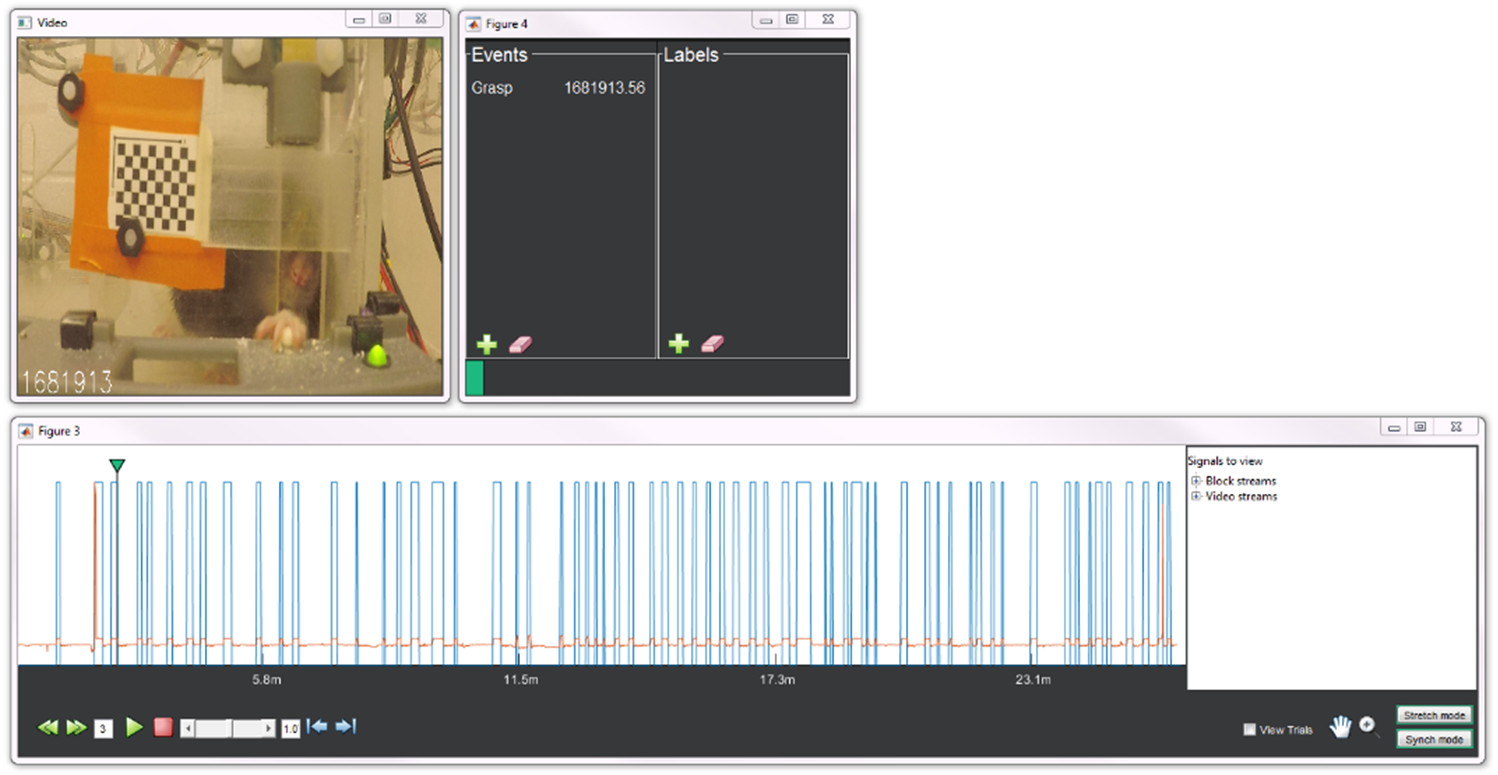

• The three windows above should open up

Load trials from the digital stream

• Check the correct digital input under the "Block streams" expandable menu on the right side of the main panel
• The blue high/low signal should appear in the same window after a moment of loading
• Check the "show trials" option near the bottom of the main panel and the digital signal should also be filled with a green color
• Each green block represents a trial as you have determined it in the set-up

Metadata Tagging

Set-up and file association

Set the event structure in +defaults\Event.m to recognize digital streams

• As a default, there are pars.BeginTrial and pars.EndTrial structures which can be used to indicate the start and stop of a trial based on a digital input. You can change the names of these, the digital signals used to indicate an event, or whether that signal should be high/low/etc.
• Make sure the name you are using for the digital input matches the stream name contained in the blockObj-- blockObj.Streams.DigIO(1)

Run event detection to segment trials based on the digital input

blockObj.doEventDetection

Match videos to corresponding blocks under +defaults\Video.m

• Set pars.HasVideo = true; and input the folder containing the videos under pars.VidFilePath
• pars.UniqueKey.vars should have the metadata from the video name that matches the metadata contained in the recording name
• pars.NamingConvention works to save the metadata from the video name similar to that done with parsing the initial tank file name set-up

Run blockObj.initVideos to pair the videos to the respective block in pars

• Check blockObj.Cameras for correct assignment which should result in a structure under the Meta property with the number of cameras by the total number videos

Alternatively, you can pair them manually

path = fullfile('K:\Rat\Video\UnilateralReach\Experimental_Folder\Animal_Folder','R20-99_2020_1_11_0_Left_A_0.mp4');

camObj = nigeLab.libs.nigelCamera(blockObj,{path});

or with multiple video files for the block

path = {'K:\Rat\Video\UnilateralReach\Experimental_Folder\Animal_Folder\R20-99_2020_1_11_0_Left_A_0.mp4', 'K:\Rat\Video\UnilateralReach\Experimental_Folder\Animal_Folder\R20-99_2020_1_11_0_Left_A_1.mp4'};

camObj = nigeLab.libs.nigelCamera(blockObj, path);
