vertical.js is a lightweight javascript framework drawing resources allocation hierarchy using HTML5 canvas.

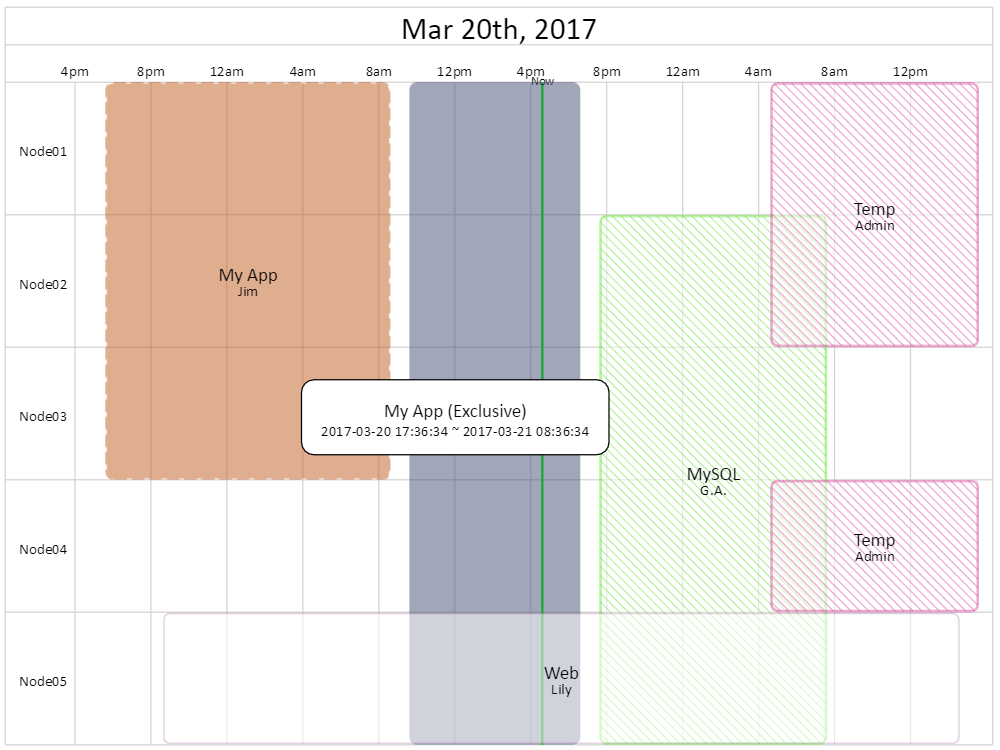

Example output
vertical.js requires jQuery, moment.js and paper.js. Includes them before vertical.js
<!DOCTYPE html>
<html>
<head>
<script src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.1.1/jquery.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/paper.js/0.10.3/paper-full.min.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/moment.js/2.17.1/moment.min.js"></script>
<script src="src/vertical.js"></script>
</head>
<body>
<canvas id="myCanvas" resize></canvas>
</body>
</html>Draw your resources allocation hierarchy with vertical.js
$('#myCanvas').verticalResource({
calendar: {
start: moment('2017-03-08 11:00:00'),
end: moment('2017-03-08 23:00:00')
},
resources: ['Node01','Node02','Node03','Node04','Node05'],
verticals: [
{
name: "Gray Sort",
owner: "jun.wang",
shareType: "Exclusive",
resources: ['Node01','Node02','Node03', 'Node05'],
beginTime: moment('2017-03-08 12:00:00'),
endTime: moment('2017-03-08 17:00:00'),
services: [
{
name: "Hadoop 2.7.0"
},
{
name: "Spark 1.5.1"
}
]
},
{
name: "MySQL",
owner: "jun.wang",
shareType: "Share",
resources: ['Node02','Node03','Node04', 'Node05'],
beginTime: moment('2017-03-08 17:00:00'),
endTime: moment('2017-03-08 20:00:00'),
services: []
},
{
name: "Web",
owner: "jun.wang",
shareType: "Share",
resources: ['Node01','Node02','Node03', 'Node04'],
beginTime: moment('2017-03-08 19:00:00'),
endTime: moment('2017-03-08 22:00:00'),
services: []
}
]
});
