Take white space's advance into account when processing line breaking

[zmiao]

Launch Checklist

• Fix: text-max-width is not correctly enforced #11088
  Previously, all the invisible codepoints' advances are not taken into account to text's accumulated width, even if the advance is not zero, such as white space ' '. The bug is revealed with Mono fonts as the white space from the font family has a bigger advance, 14 from two Mono fonts being tested, while the advance of default fonts is only 6.

---

• briefly describe the changes in this PR
• include before/after visuals or gifs if this PR includes visual changes

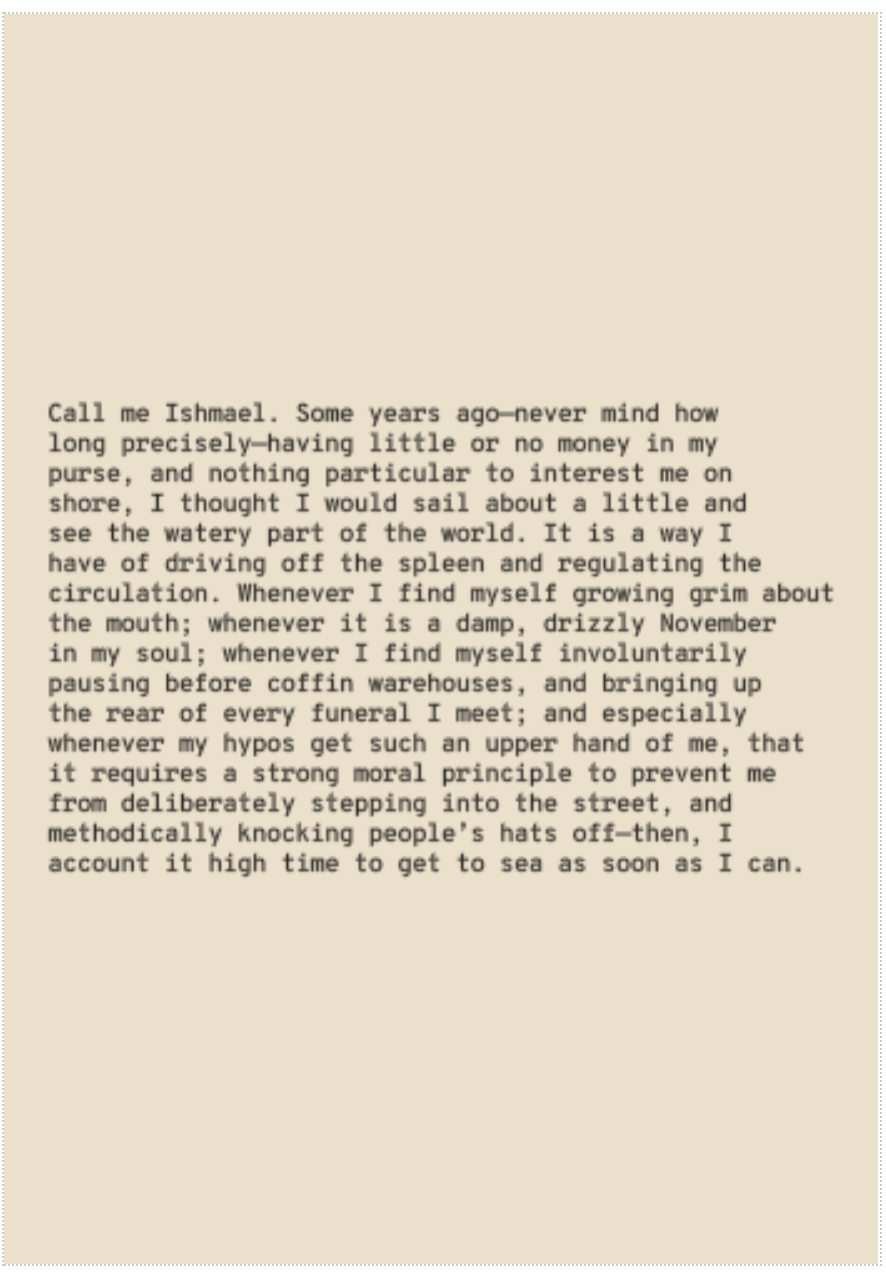

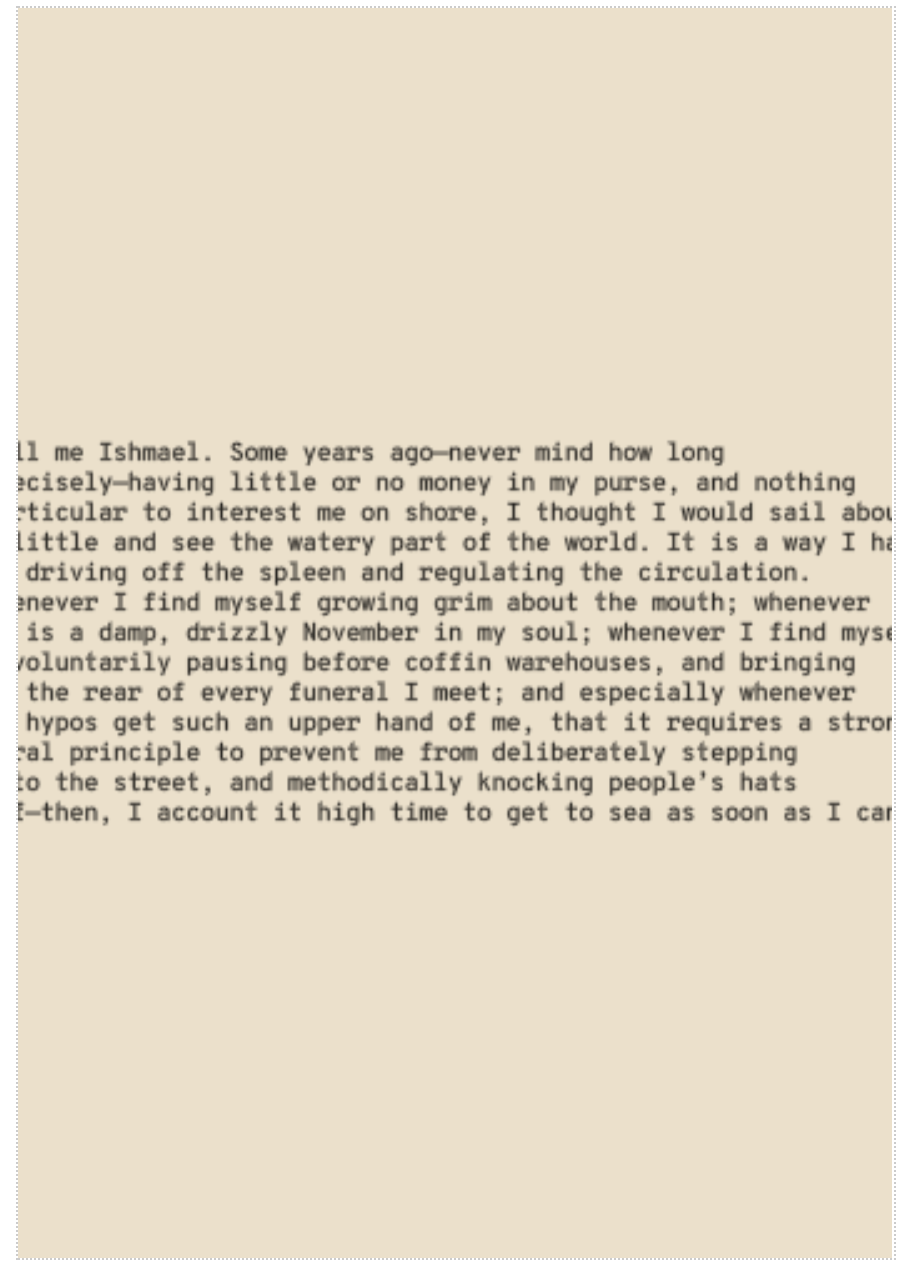

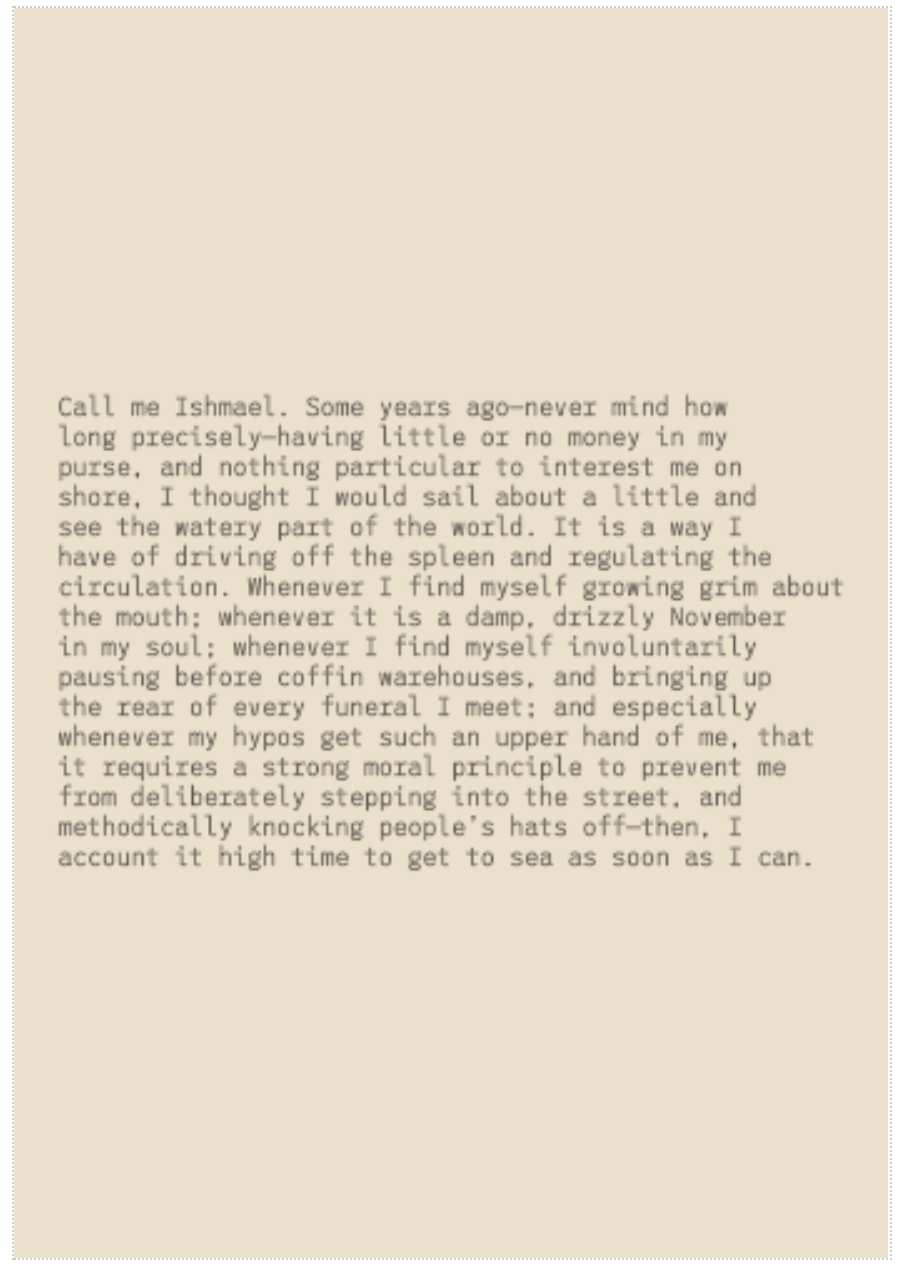

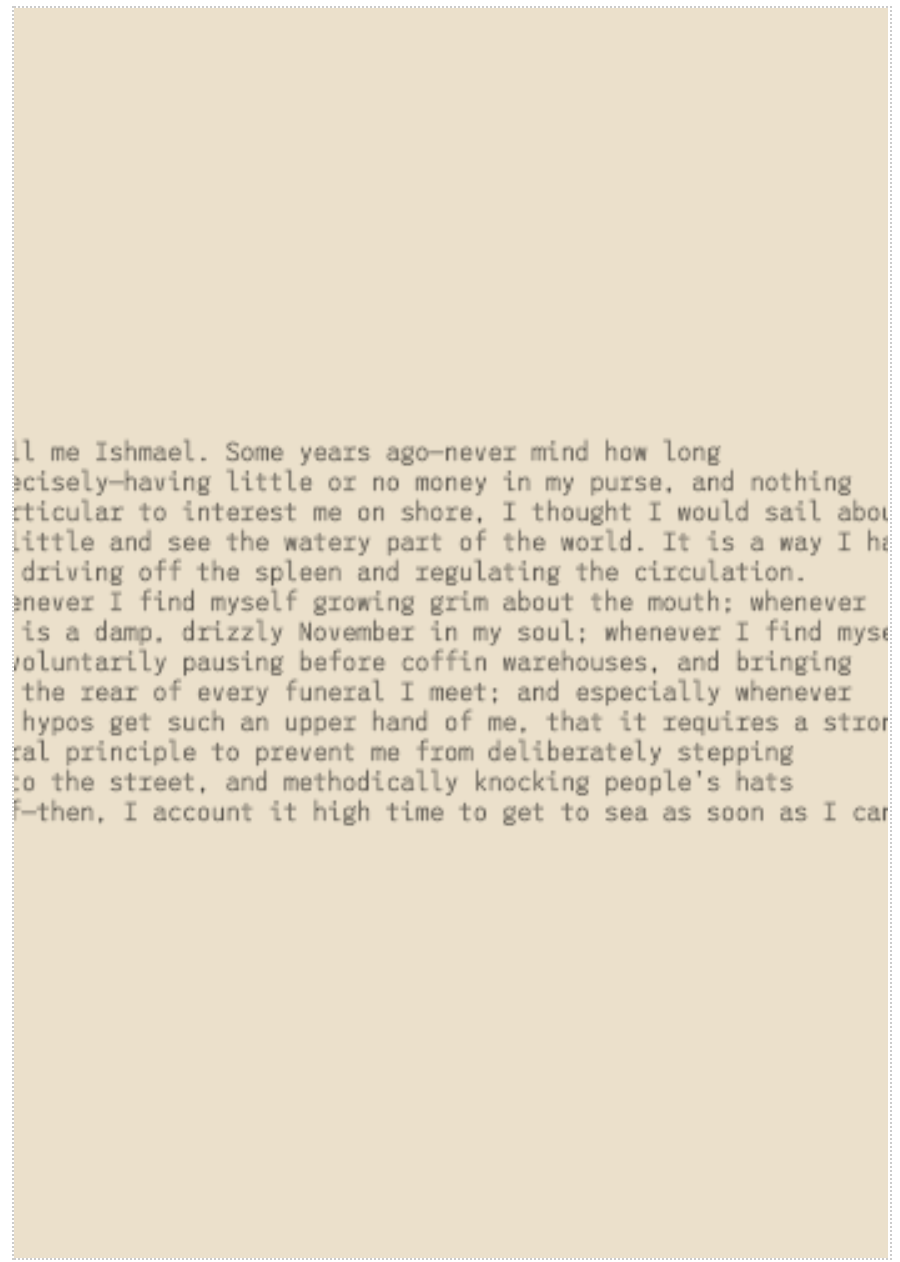

Font	Before	After
League Mono Thin
Overpass Mono Regular

• write tests for all new functionality
• document any changes to public APIs
• post benchmark scores
• manually test the debug page
• tagged @mapbox/map-design-team @mapbox/static-apis if this PR includes style spec API or visual changes
• tagged @mapbox/gl-native if this PR includes shader changes or needs a native port
• apply changelog label ('bug', 'feature', 'docs', etc) or use the label 'skip changelog'
• add an entry inside this element for inclusion in the mapbox-gl-js changelog: <changelog>Fix line breaking behavior by taking the white space's advance into account.</changelog>

[ansis]

This looks good to me! We should double check with some map designers that the change in behavior is acceptable. Styles designed with the old (wrong) behavior are going to look slightly different now. I think that is probably preferable to not fixing. An example with a non-mono font could be helpful for that.

[melanieimfeld]

Hi! @zmiao, trying to better understand the visual impact of this fix: Is it correct that the text-max-width will be reduced for any kind of symbol text? For example, text that is 10em wide (assuming the same text size and font) will appear narrower after this PR than before

[zmiao]

@melanieimfeld that's right, the whole tendency of the line width per line will most probably become narrower than before if there are several empty spaces in the line. As with this change, the white space's width will be taken into account for line breaking determination.

[melanieimfeld]

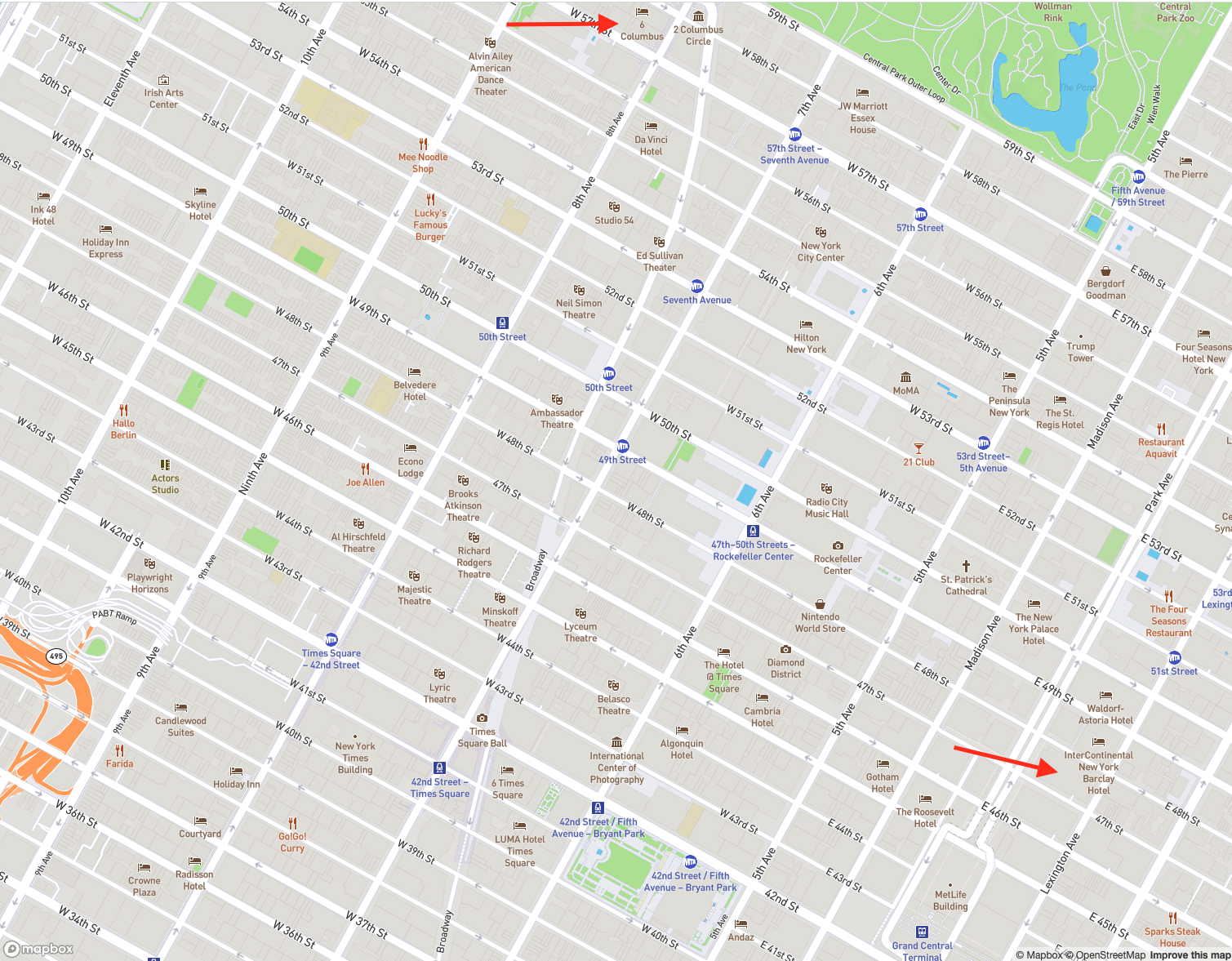

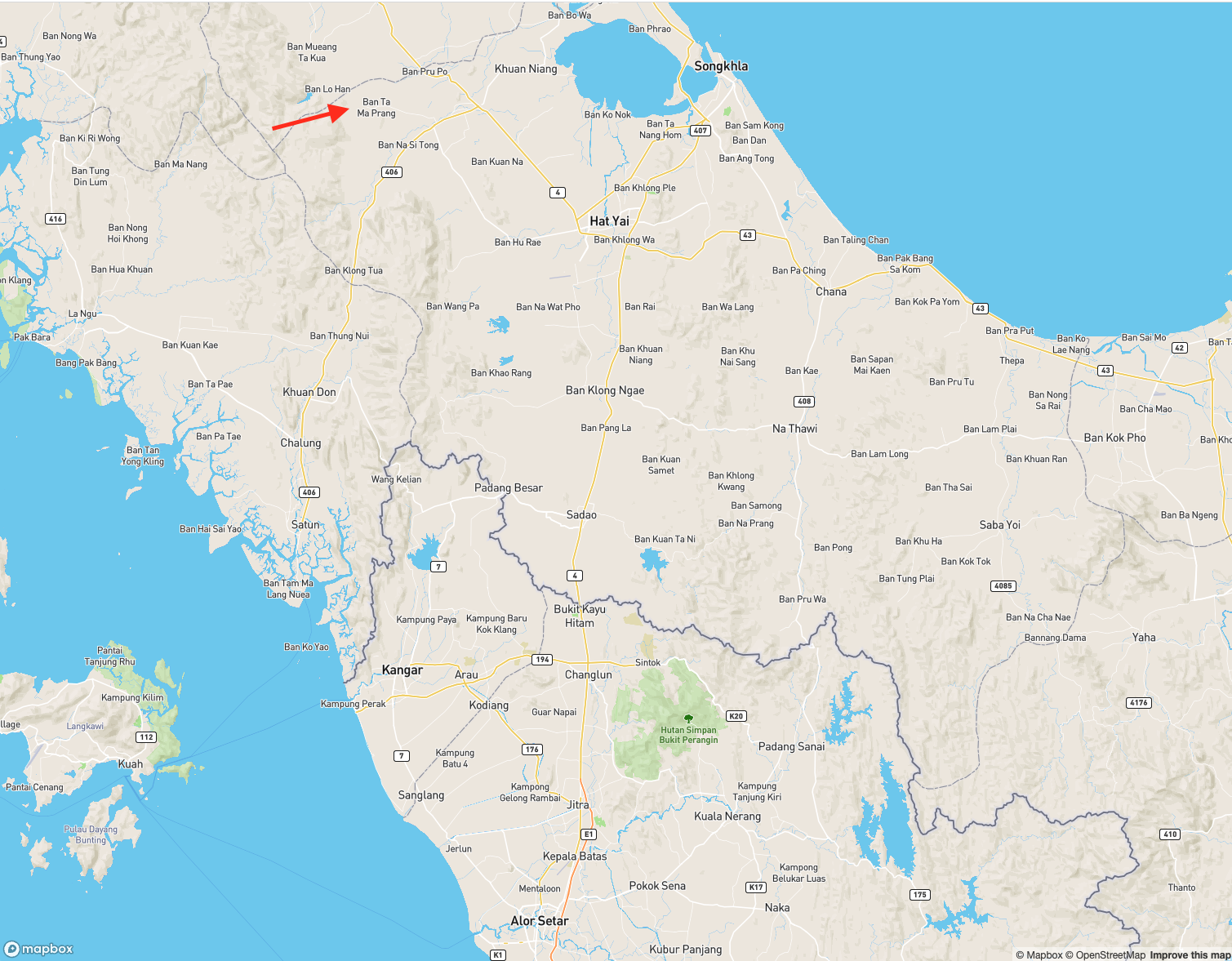

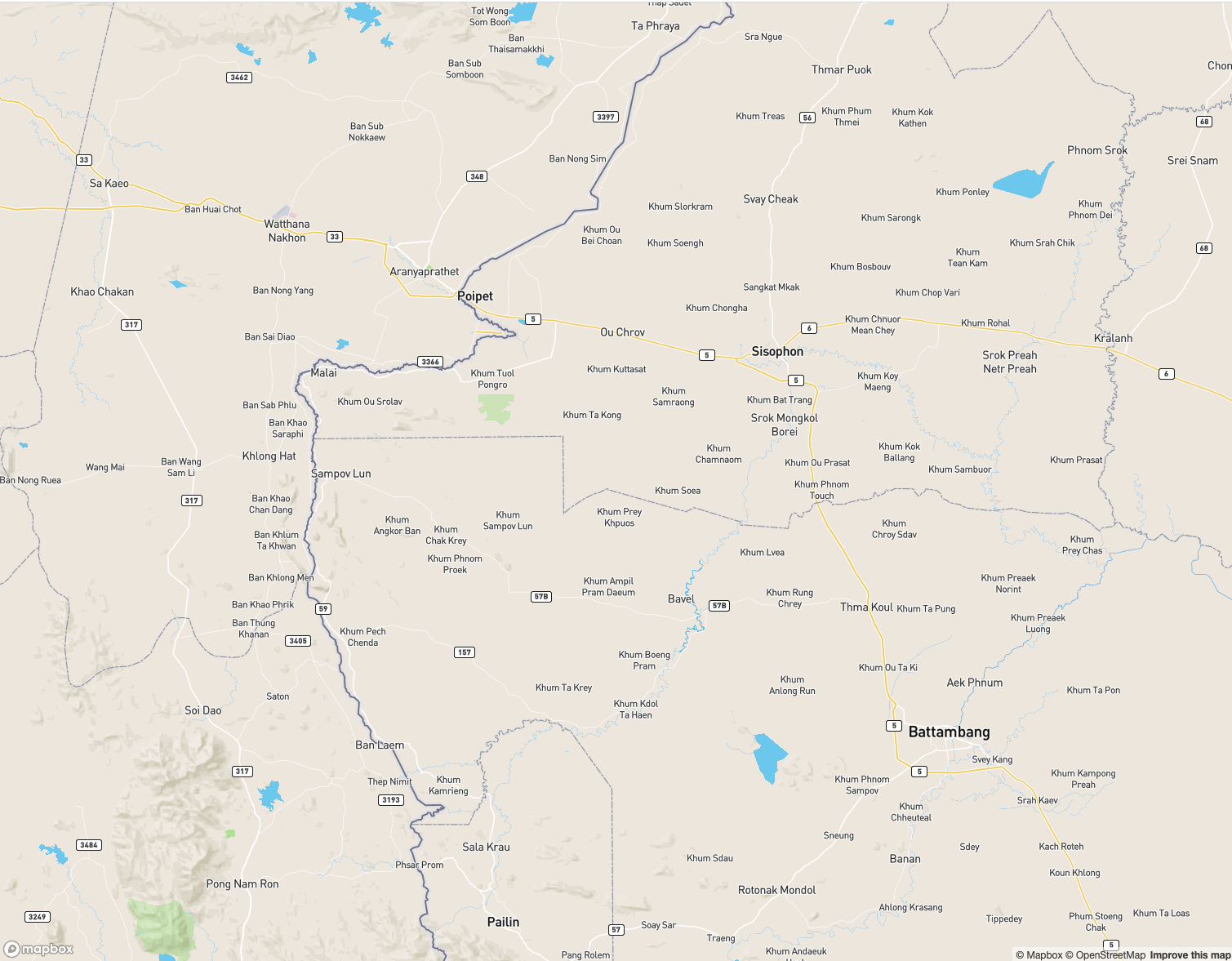

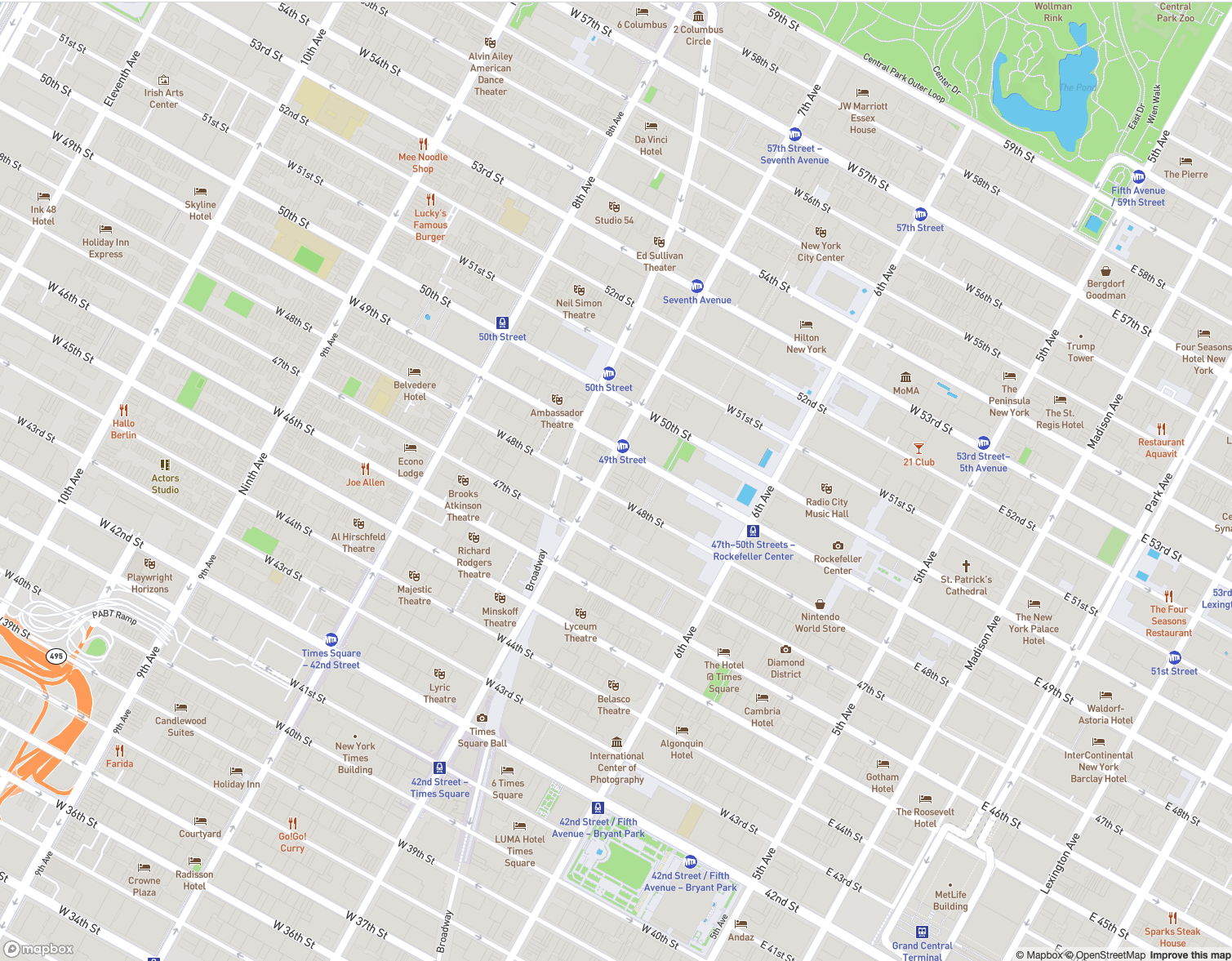

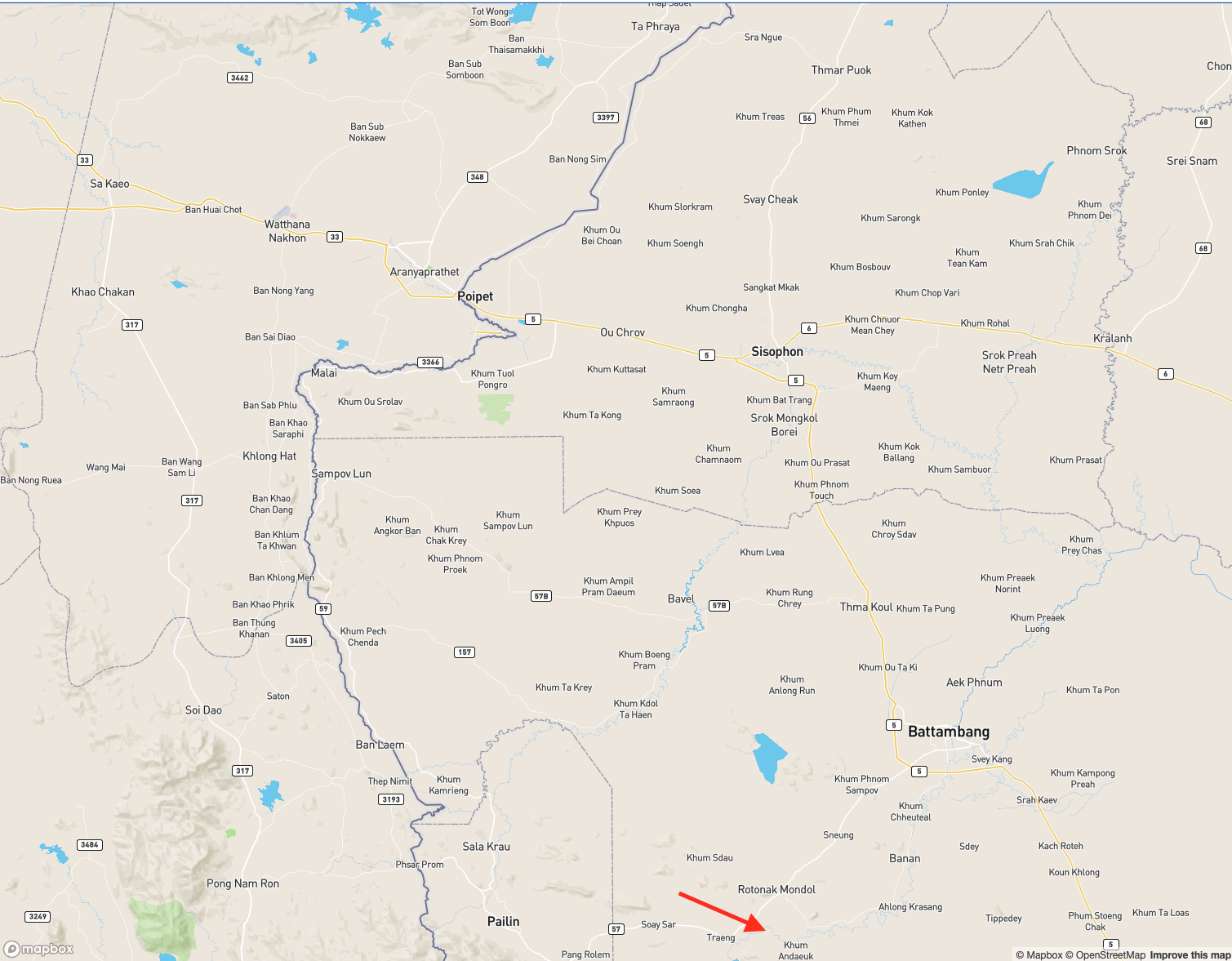

@zmiao I was looking at streets-v11 to see if there are any impactful visual changes to the line break logic in long label names. I found relatively few changes:

before	after

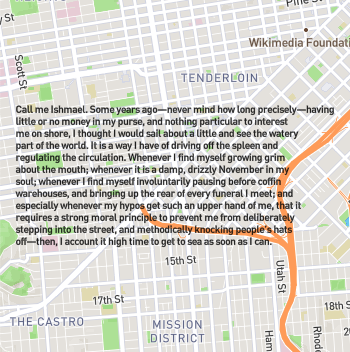

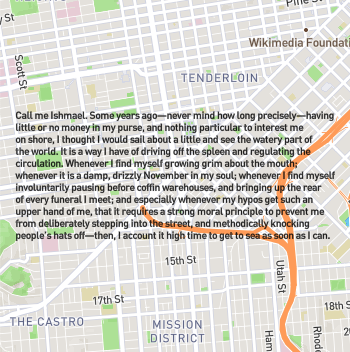

Our core styles are using DIN pro {} and Arial Unicode MS Regular as fallback, and for these fonts, the change in text width is a bit less extreme. Long text before and after example for DIN pro medium:

That's to say that the change shouldn't impact our core styles in a noticeable way. The most noticeable change will be with styles using custom labels with a very long text. I can't think of any such styles in the wild, but I do know that @JonniWalker1977 has been experimenting with large text labels!
