Formatting examples

This page illustrates and provides examples of the formatting available for Timescale documentation. Note that for most elements, spacing is important.

Procedure

Use for a logical sequence of steps to achieve a goal. For example, create a hypertable.

Syntax:

<Procedure>

1. **Step 1 summary in bold**

   Step 1 explanation in details.

   ```
   step 1 code
   ```

1. **Step 2 summary in bold**

   Step 2 explanation in details.

   1. Sub-step 1.

     ```
     Sub-step 1 code
     ```

   1. Sub-step 2.

   1. Sub-step 3.

</Procedure>

See a use example in the docs.

Highlight blocks

Use sparingly and only if it's essential to attract the reader's attention.

• Note



  Syntax:

  <Highlight type="note">

  Additional relevant information worth highlighting.

  </Highlight>


  See a use example in the docs.

• Important



  Syntax:

  <Highlight type="important">

  Important things to keep in mind.

  </Highlight>


  See a use example in the docs.

• Warning



  Syntax:

  <Highlight type="warning">

  Caution!

  </Highlight>


  See a use example in the docs.

• Deprecation



  Syntax:

  <Highlight type="deprecation">

  A deprecation notice.

  </Highlight>


  See a use example in the docs.

• Cloud



  Syntax:

  <Highlight type="cloud">

  A note dealing specifically with Timescale Cloud.

  </Highlight>


Tabs

Syntax:

<Tabs label="Tabs label for accessibility">

<Tab title="First tab title">

First tab content

</Tab>

<Tab title="Second tab title">

Second tab content

</Tab>

</Tabs>

See a use example in the docs.

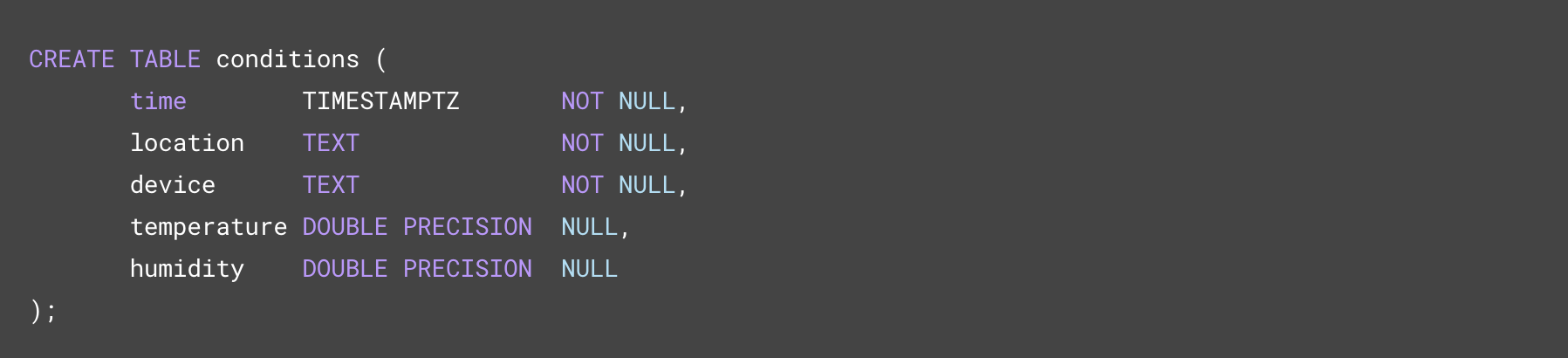

Code blocks

As a default, use fenced Markdown code blocks:

To remove line numbers and the copy button, use the CodeBlock component with canCopy and showLineNumbers set to false:

Syntax:

<CodeBlock canCopy={false} showLineNumbers={false} children={`
CREATE TABLE conditions (
       time          TIMESTAMPZ        NOT NULL,
       location      TEXT              NOT NULL,
       device        TEXT              NOT NULL,
       temperature   DOUBLE PRECISION  NULL,
       humidity      DOUBLE PRECISION  NULL
);
`} />

See a use example in the docs.

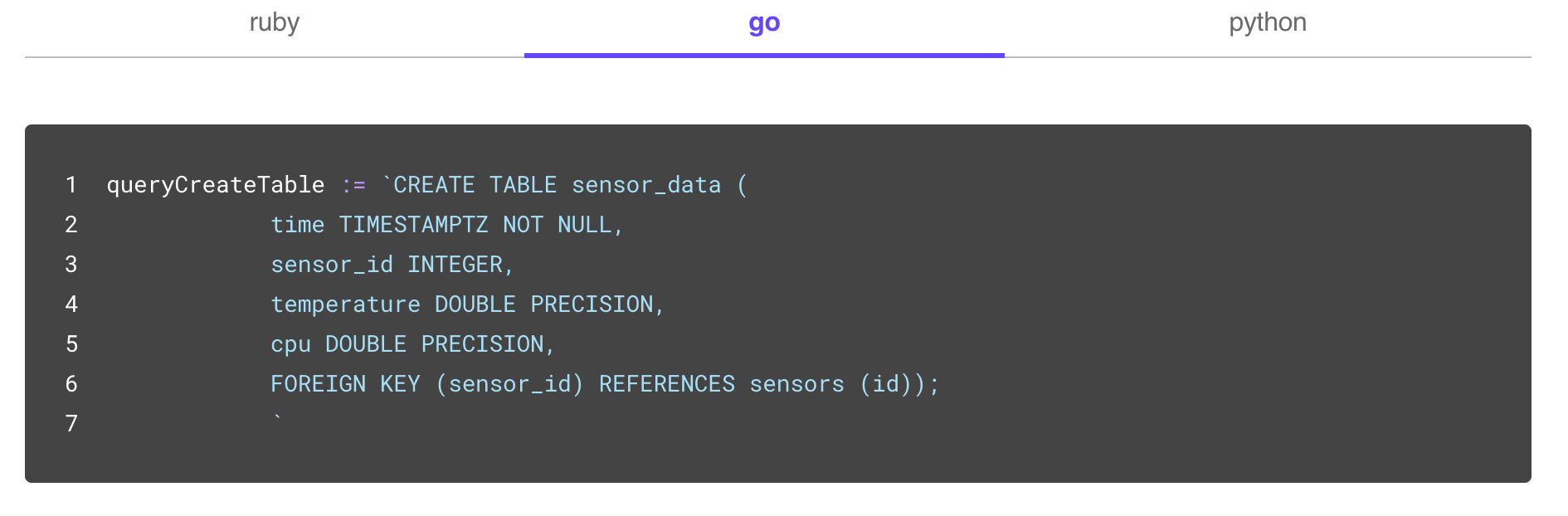

Multi-tab code blocks

Syntax:

<Terminal>

<tab label='ruby'>

```ruby
ruby code
```

</tab>

<tab label="python">

```python
pyhon code
```

</tab>

<tab label="go">

```go
go code
```

</tab>

</Terminal>

Tags

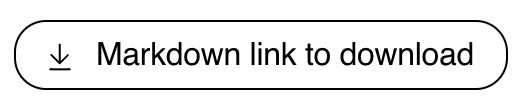

• Download



  Syntax:

  <Tag type="download">Markdown link to download</Tag>


  See a use example in the docs.

• Experimental



  Syntax:

  <Tag type="experimental">Experimental</Tag>


  See a use example in the docs.

• Toolkit



  Syntax:

  <Tag type="toolkit">Toolkit</Tag>


  See a use example in the docs.

• Community



  Syntax:

  <Tag type="community">Community</Tag>


  See a use example in the docs.

• Hollow



  Syntax:

  <Tag variant="hollow">Text to display in a tag</Tag>


Partials

Import a partial from the _partials directory and then reference it in the relevant part of the page.

Syntax:

import PartialName from "versionContent/_partials/_partial.mdx";

<PartialName />

See a use example in the docs.

Links

Links should be reference-style Markdown links.

Syntax:

[Anchor][link-label]

[link-label]: absolute or relative URL

For example:

A link to the data tiering section in docs
