In any large-scale Windows environment, there is likely a re-occurring need to collect, analyze, and react to host-based data whether it be for IT operations, cyber security response, or cyber research. Typically, these needs are met through the development of one-off scripts, utilities, and single-purpose agents. One problem with this approach is scalability. As more data collection needs arise, more and more one-off scripts (and the like) are deployed to endpoints slowly increasing the combined resource load and associated “agent bloat”.
In addition, because Windows is a complex and modular operating system, a myriad of APIs exist with little consistency in how they describe the data they provide. For example, a process might be identified by name from one API, by PID from another, and by a collection of thread IDs from a third. A user may be identified by SID, by Active Directory GUID, or by a username. A file might be identified by a logical path, by a physical path or by one of the other 17 observed OS path variants. In such an ecosystem, the one-off approach to host-based data collection creates datasets that, while useful for a specific need, likely lack any chance for reusability or discoverability.

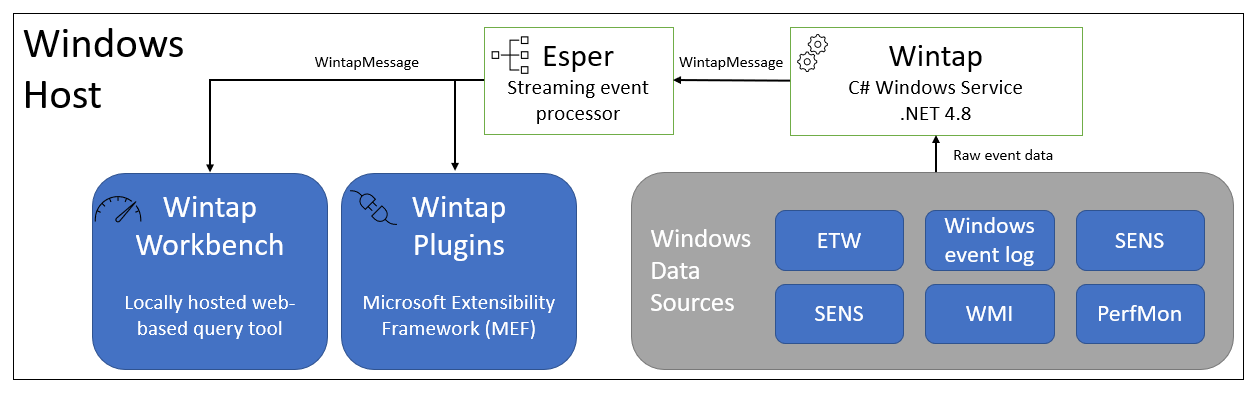

Wintap aspires to solve these problems by providing the following capabilities:
• A singular and extensible service-based runtime environment. Wintap provides an easy-to-use extensibility API so that new functionality can be merged through the development of independent library modules while maintaining a single agent footprint on the endpoint.
• A unified data model. Wintap provides a single, strongly typed data model for describing data sourced from the myriad of underlying APIs it consumes from. This unified model forms a foundation upon which data can be consistently discovered, consumed, combined, and correlated.
• API abstraction. Wintap integrates deeply into many low-level Windows event streams such as Event Tracing for Windows (ETW), COM+ System Notifications and others. Plugin authors can easily take advantage of these rich event sources without needing to implement any of the low-level API details.
• Data discovery. Wintap provides an integrated, locally hosted web-based analytic “workbench” from where real-time event streams can be queried and explored.
Desktop OS: Windows 10 64-bit
Server OS: Windows Server 2016 64-bit
.NET Framework: 4.8
Memory: 4GB
LLNL-CODE-837816
