#CCB-X-Reader for Cocos2d-X This C++ class helps processing ccb files for your Cocos2d-X project. It's ported from the original CCBReader class of the popular CocosBuilder project. Note: the newly introduced .ccbi format is currently not supported.

Basically, CCB-X-Reader reads and parses the ccb files and creates and initilizes correspoding Cocos2d instances for your Cocos2d-X project. It's just like its CCBReader.m counterpart in a Cocos2d-iPhone project.

Once again, as of now, CCB-X-Reader only supports parsing ccb files. The newer and smaller ccbi format is currently not supported.

#How to Play with the Example Project

1. The enclosing example project is a standard Cocos2d-X project based on Cocos2d-1.0.1-x-0.13.0 beta. It was written and tested on both iPhone and Android.
2. How to play with it: build and run.

How to Export CCB Files Using CocosBuilder

1. If you are using CocosBuilder 1.0, there's one and only one export format, and it's ccb.
2. However, if you are using CocosBuilder 1.1 or an even newer future version, the only export format is ccbi. But don't worry, take a look at the project file, it's actually right what we need, the ccb file.

#How To Use CCB-X-Reader

1. Add these two classes to your Cocos2d-X project.

    CCBReader.h
    CCBClassGenerator.h


2. Make sure all the .ccb/.png/.jpg etc files are properly copied and added into your Cocos2d-X project.

3. Try parse a .ccb file with one line of code.

    //Here we initialize a customized CCScene instance from *example.ccb* created from CocosBuilder
    CCScene *pScene = CCBReader::sceneWithNodeGraphFromFile("example.ccb");


4. C++ is not as dynamically implemented as Objective-C. For example, C++ is unable to create a class solely based on the class name string at runtime. Therefore we need a customized CCBClassGenerator class to handle all the Objective-C style dynamic stuff for us. The logic behind CCBClassGenerator is very simple. Basically all it does is string lookup. Make sure you have properly implemented the CCBClassGenerator class before running.

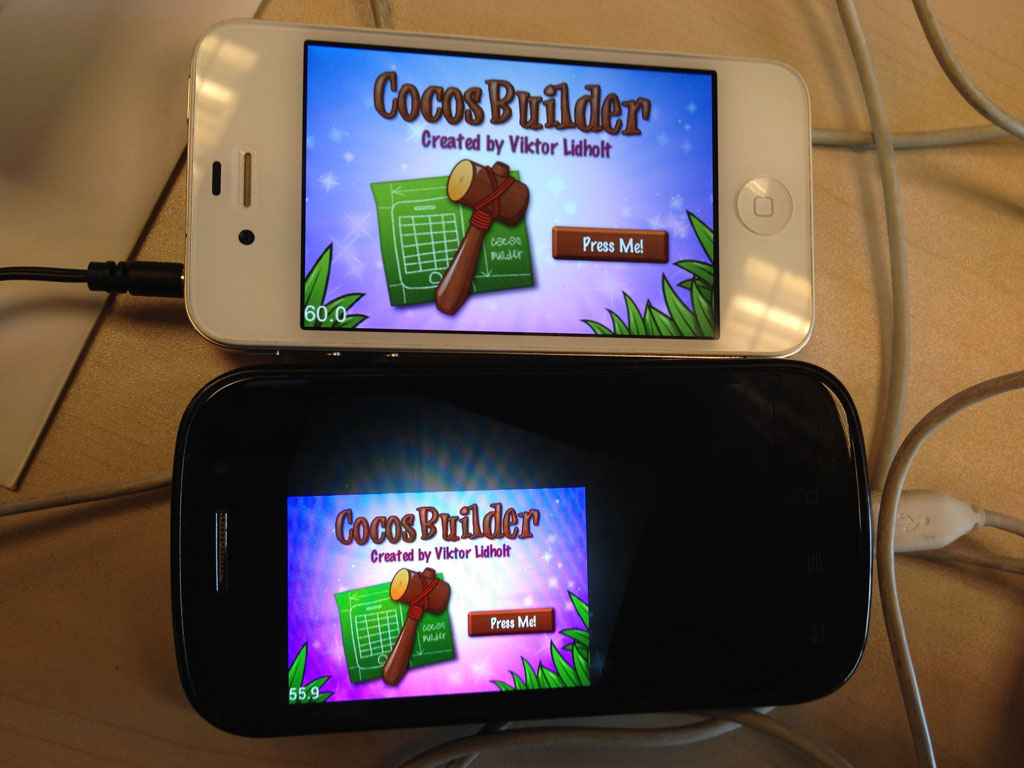

YouTube Demo (running on an Android device): http://www.youtube.com/watch?v=QgA0fkse-AA

#Known Issues

1. Due to some underlying bug in the Cocos2d-X implementation, when running on an iPhone 4s device, the example code will make the screen flicker.

2. This project is not finished yet. If you take a close look at the implementation, you'll see things like this:

    if (extraProps) {
    	// To be implemented soon...
    }


As the comments indicate, those missing parts will be implemented soon. At the same time, You are welcome to contribute.

#Contact Email: [email protected]

Blog post: http://diwublog.com/archives/262
