feat(table-of-contents): scroll-tracking hook + wire docs TOC to it by subalakshmi-murugesan · Pull Request #645 · cloudflare/kumo

subalakshmi-murugesan · 2026-07-20T17:29:43Z

Summary

The TableOfContents component is presentational, so consumers had to wire up their own scroll tracking. This adds a shared useTableOfContentsActiveId hook to @cloudflare/kumo and rewires the docs "On this page" TOC to use it.

The hook derives the active section from scroll position via an IntersectionObserver (useScrollspy) and pins a section on click / hash deep-link, resuming scrollspy once the smooth scroll settles.

Highlights the topmost section actually in view — no longer stays pinned to the first item.
Never force-jumps to the last item at the page bottom, so short trailing sections stay reachable.
selectSection keeps a clicked / deep-linked section active even when it's too short to reach the activation line.

This mirrors the scroll-tracking fix landed for the dashboard TOC (stratus !40583, DESENG-1024), extracting the shared hook so the behavior isn't re-implemented per consumer.

Changes

@cloudflare/kumo (minor): new useTableOfContentsActiveId hook (+ internal useScrollspy primitive, types, unit tests), exported from the package root.
@cloudflare/kumo-docs-astro (patch): the docs TableOfContents now consumes the shared hook instead of its own bespoke IntersectionObserver (which force-jumped to the last item at the page bottom). The island is mounted client:only because the hook builds an IntersectionObserver during render, which isn't available during Astro SSR.

Testing

pnpm --filter @cloudflare/kumo test — 25 passing (incl. 5 new hook tests)
pnpm --filter @cloudflare/kumo typecheck + docs astro check + pnpm lint — clean
pnpm --filter @cloudflare/kumo build and docs astro build — succeed (71 pages)
Manually verified on the docs dev server: the active item tracks scroll, no last-item jump, and click / #hash pins the section.
Reviews
bonk has reviewed the change
automated review not possible because: opened via CLI by an AI agent; bonk + human review requested on the PR
Tests
Tests included/updated
Automated tests not possible - manual testing has been completed as follows:
Additional testing not necessary because:

…ng hook The TableOfContents component is presentational, so consumers had to wire up their own scroll tracking. Add a shared hook that derives the active section from scroll position via an IntersectionObserver (useScrollspy) and pins a section on click / hash deep-link, resuming scrollspy once the smooth scroll settles. It highlights the topmost section in view and never force-jumps to the last item at the page bottom.

Replace the docs TOC's bespoke IntersectionObserver (and its force-jump-to-last-item clamp) with the shared useTableOfContentsActiveId hook, so the active section tracks scroll position and short trailing sections stay reachable. Mount the island client:only since the hook creates an IntersectionObserver during render, which is unavailable during Astro SSR.

Rework the scroll-tracking hook so it is SSR-safe and simpler to consume: - Create the IntersectionObserver only inside effects (never during render), so consumers can server-render again — docs islands revert from client:only back to client:load. - API takes section `ids` (plus `offset`, `root`, `trackHash`) instead of resolved Element targets, and handles hash deep-links internally. - Replace the scrollend-based pin/resume with a debounced scroll listener, fixing a permanently-stuck active state on browsers without scrollend (Safari < 18.2). - Collapse the useIntersectionObserver/useScrollspy layers into the hook and rename the return type to UseTableOfContentsActiveIdResult. - Test the real observer logic via a mock IntersectionObserver instead of mocking the scrollspy layer wholesale. - TableOfContents.Group: attach onClick to the group label link instead of the wrapping <li>, so clicks on nested items no longer bubble into the group handler and override the child's selection. - Document the hook on the TableOfContents docs page with a live custom-scroll-container demo. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

mattrothenberg · 2026-07-20T19:31:56Z

/bonk please review and approve

pkg-pr-new · 2026-07-20T19:33:20Z

npm i https://pkg.pr.new/@cloudflare/kumo@645

commit: ba04a52

github-actions · 2026-07-20T19:35:11Z

Docs Preview

View docs preview

Commit: ba04a52

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

ask-bonk

Nice work — clean abstraction, good test coverage, and a real DX improvement for consumers. A few minor notes below, none blocking.

Approving.

ask-bonk · 2026-07-20T19:36:01Z

Review posted on PR #645.

Summary:

Approved the change. The hook is well-designed, SSR-safe, and the docs integration is a solid DX improvement.
Left 3 minor notes:
1. The onClick fix in TableOfContentsGroup is correct, but it changes behavior for non-link groups (no href) where onClick is now silently dropped.
2. A tiny nit on ids.join("\n") being theoretically ambiguous if ids contained newlines (not blocking).
3. Praise for the ~60 lines of observer logic removed from the docs TOC by adopting the shared hook.

github run

github-actions · 2026-07-20T19:37:47Z

Visual Regression Report — 27 changed, 15 unchanged

27 screenshot(s) with visual changes:

Button / Basic

412 px (0.47%) changed

Before	After	Diff

Button / Variant: Primary

631 px (0.71%) changed

Before	After	Diff

Button / Variant: Outline

82 px (0.09%) changed

Before	After	Diff

Button / With Icon

797 px (0.9%) changed

Before	After	Diff

Button / Loading State

198 px (0.22%) changed

Before	After	Diff

Dialog / Dialog With Actions

295 px (0.33%) changed

Before	After	Diff

Dialog / Dialog Basic

316 px (0.36%) changed

Before	After	Diff

Dialog / Dialog Sizes

2,891 px (3.26%) changed

Before	After	Diff

Dialog / Dialog Alert

1,984 px (2.24%) changed

Before	After	Diff

Dialog / Dialog Confirmation

2,827 px (3.19%) changed

Before	After	Diff

Dialog / Custom Max Width

875 px (0.99%) changed

Before	After	Diff

Dialog / Dialog With Select

130 px (0.15%) changed

Before	After	Diff

Dialog / Dialog With Combobox

483 px (0.55%) changed

Before	After	Diff

Dialog / Dialog With Dropdown

500 px (0.56%) changed

Before	After	Diff

Dialog (Open)

96 px (0%) changed

Before	After	Diff

Select / Select Basic

1,066 px (1.2%) changed

Before	After	Diff

Select / Select Sizes

2,670 px (1.64%) changed

Before	After	Diff

Select / Select Without Label

721 px (0.81%) changed

Before	After	Diff

Select / Select With Description

0 px (0%) changed

Before	After	Diff

Select / Select Custom Rendering

1,300 px (1.47%) changed

Before	After	Diff

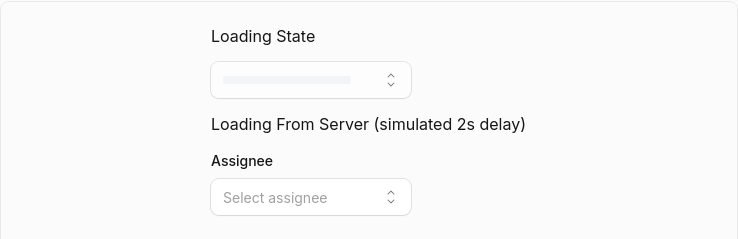

Select / Select Loading

2,360 px (1.34%) changed

Before	After	Diff

Select / Select Complex

1,651 px (1.59%) changed

Before	After	Diff

Select / Select Disabled Options

1,217 px (1.37%) changed

Before	After	Diff

Select / Select Disabled Items

785 px (0.89%) changed

Before	After	Diff

Select / Select Grouped With Disabled

1,313 px (1.48%) changed

Before	After	Diff

Select / Select Long List

1,517 px (1.46%) changed

Before	After	Diff

Select (Open)

1,407 px (0.01%) changed

Before	After	Diff

15 screenshot(s) unchanged

Button / Variant: Secondary
Button / Variant: Ghost
Button / Variant: Destructive
Button / Variant: Secondary Destructive
Button / Sizes
Button / Icon Only
Button / Disabled State
Button / Title
Button / Link as Button
Button / Disabled Link
Select / Select With Error
Select / Select Placeholder
Select / Select With Tooltip
Select / Select Multiple
Select / Select Grouped

Generated by Kumo Visual Regression

- Use \0 as the ids cache-key separator (unambiguous for any valid id). - Document why Group drops onClick when no href is provided. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

subalakshmi-murugesan and others added 5 commits July 20, 2026 11:49

Merge branch 'main' into feat/UI-Table-of-contents-kumo-scrollfix

0eb79cf

Merge branch 'main' into feat/UI-Table-of-contents-kumo-scrollfix

35ec1e5

fix(table-of-contents): satisfy no-floating-promises in hook test

dbbeb92

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

ask-bonk Bot reviewed Jul 20, 2026

View reviewed changes

Comment thread packages/kumo/src/components/table-of-contents/table-of-contents.tsx

Comment thread packages/kumo/src/components/table-of-contents/use-table-of-contents-active-id.ts Outdated

Comment thread packages/kumo-docs-astro/src/components/docs/TableOfContents.tsx

chore(table-of-contents): address review nits

ba04a52

- Use \0 as the ids cache-key separator (unambiguous for any valid id). - Document why Group drops onClick when no href is provided. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

mattrothenberg approved these changes Jul 20, 2026

View reviewed changes

mattrothenberg merged commit 86ee08c into cloudflare:main Jul 20, 2026
15 checks passed
