Use this CDK stack to create a security group for bastion host.

What is it?

• A security group acts as a virtual firewall for your instance to control inbound and outbound traffic.
• A network access control list (ACL) is an optional layer of security for your VPC that acts as a firewall for controlling traffic in and out of one or more subnets.
• Comparison of security groups and network ACLs

Features

• Deploy a security group for bastion host.
• Add inbound rules for ssh access.

Prerequisites

You will need the following before utilize this CDK stack:

• AWS CLI
• AWS Account and User
• Node.js
• IDE for your programming language
• AWS CDK Tookit
• AWS Toolkit VSCode Extension

Stack Explain

cdk.json

Define project-name and env context variables in cdk.json

{
  "context": {
    "project-name": "container",
    "env": "dev",
    "profile": "devopsrepo"
  }
}

lib/vpc-stack.ts

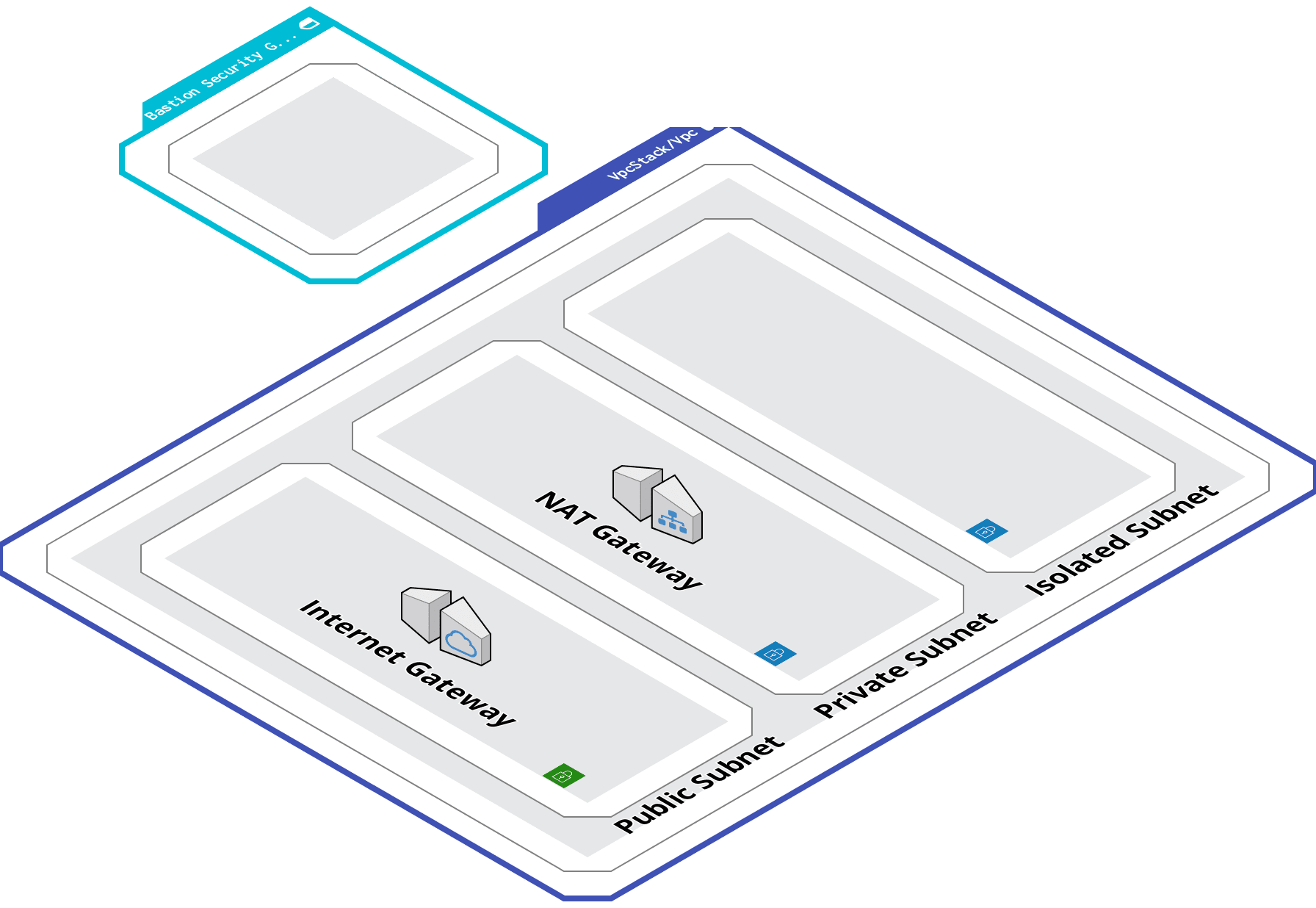

Setup standard VPC with public, private, and isolated subnets.

const vpc = new ec2.Vpc(this, 'Vpc', {
  maxAzs: 3,
  natGateways: 1,
  cidr: '10.0.0.0/16',
  subnetConfiguration: [
    {
      cidrMask: 24,
      name: 'ingress',
      subnetType: ec2.SubnetType.PUBLIC,
    },
    {
      cidrMask: 24,
      name: 'application',
      subnetType: ec2.SubnetType.PRIVATE,
    },
    {
      cidrMask: 28,
      name: 'rds',
      subnetType: ec2.SubnetType.ISOLATED,
    }
  ]
});

• maxAzs - Define 3 AZs to use in this region.
• natGateways - Create only 1 NAT Gateways/Instances.
• cidr - Use '10.0.0.0/16' CIDR range for the VPC.
• subnetConfiguration - Build the public, private, and isolated subnet for each AZ.

Create flowlog and log the vpc traffic into cloudwatch

vpc.addFlowLog('FlowLog');

lib/security-stack.ts

Get vpc create from vpc stack

const { vpc } = props;

Create security group for bastion host

const bastionSecurityGroup = new ec2.SecurityGroup(this, 'BastionSecurityGroup', {
  vpc: vpc,
  allowAllOutbound: true,
  description: 'Security group for bastion host',
  securityGroupName: 'BastionSecurityGroup'
});

• vpc - Use vpc created from vpc stack.
• allowAllOutbound - Allow outbound rules for access internet
• description - Description for security group
• securityGroupName - Define the security group name

Allow ssh access to bastion host

bastionSecurityGroup.addIngressRule(ec2.Peer.anyIpv4(), ec2.Port.tcp(22), 'SSH access');

Deploy all the stacks to your aws account.

cdk deploy '*'
or
cdk deploy '*' --profile your_profile_name

Use cases

Act as a firewall to block all inbound traffic and allow the only necessary port to access the instances.

Useful commands

NPM commands

• npm run build compile typescript to js
• npm run watch watch for changes and compile
• npm run test perform the jest unit tests

Toolkit commands

• cdk list (ls) Lists the stacks in the app
• cdk synthesize (synth) Synthesizes and prints the CloudFormation template for the specified stack(s)
• cdk bootstrap Deploys the CDK Toolkit stack, required to deploy stacks containing assets
• cdk deploy Deploys the specified stack(s)
• cdk deploy '*' Deploys all stacks at once
• cdk destroy Destroys the specified stack(s)
• cdk destroy '*' Destroys all stacks at once
• cdk diff Compares the specified stack with the deployed stack or a local CloudFormation template
• cdk metadata Displays metadata about the specified stack
• cdk init Creates a new CDK project in the current directory from a specified template
• cdk context Manages cached context values
• cdk docs (doc) Opens the CDK API reference in your browser
• cdk doctor Checks your CDK project for potential problems
