Use this CDK stack to create a standard VPC.

What is it?

Provision a logically isolated section of the AWS cloud where you can launch AWS resources in a virtual network that you define.

Features

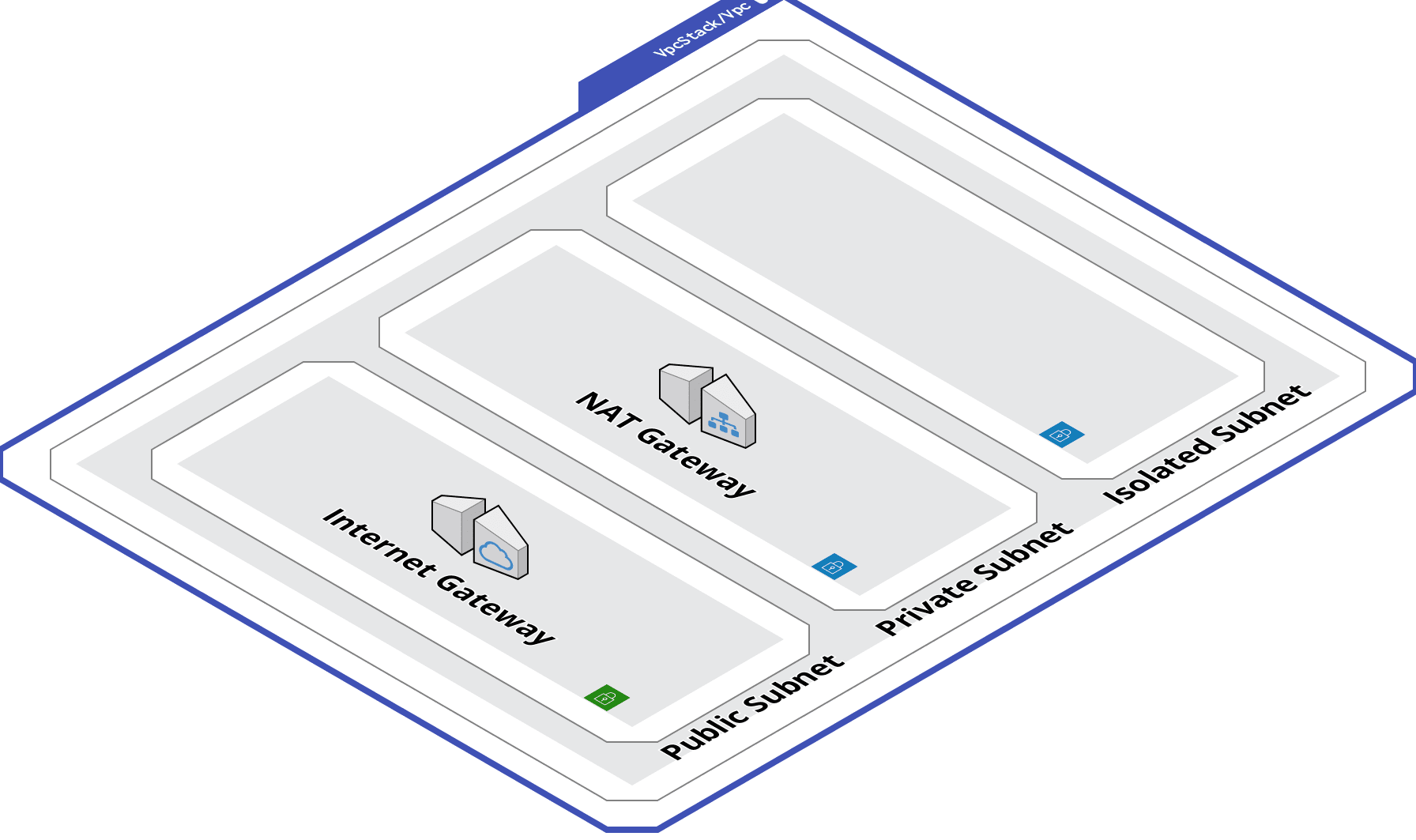

• Deploy a standard VPC with public, private, and isolated subnet.
• Use multiple AZs deployments for high availability.
• Use flow logs to capture information about IP traffic going to and from network interfaces in VPC.

Prerequisites

You will need the following before utilize this CDK stack:

• AWS CLI
• AWS Account and User
• Node.js
• IDE for your programming language
• AWS CDK Tookit
• AWS Toolkit VSCode Extension

Stack Explain

cdk.json

Define project-name and env context variables in cdk.json

{
  "context": {
    "project-name": "container",
    "env": "dev",
    "profile": "devopsrepo"
  }
}

lib/vpc-stack.ts

Setup standard VPC with public, private, and isolated subnets.

const vpc = new ec2.Vpc(this, 'Vpc', {
  maxAzs: 3,
  natGateways: 1,
  cidr: '10.0.0.0/16',
  subnetConfiguration: [
    {
      cidrMask: 24,
      name: 'ingress',
      subnetType: ec2.SubnetType.PUBLIC,
    },
    {
      cidrMask: 24,
      name: 'application',
      subnetType: ec2.SubnetType.PRIVATE,
    },
    {
      cidrMask: 28,
      name: 'rds',
      subnetType: ec2.SubnetType.ISOLATED,
    }
  ]
});

• maxAzs - Define 3 AZs to use in this region.
• natGateways - Create only 1 NAT Gateways/Instances.
• cidr - Use '10.0.0.0/16' CIDR range for the VPC.
• subnetConfiguration - Build the public, private, and isolated subnet for each AZ.

Create flowlog and log the vpc traffic into cloudwatch

vpc.addFlowLog('FlowLog');

Deploy the stack to your aws account.

cdk deploy
or
cdk deploy --profile your_profile_name

Useful commands

NPM commands

• npm run build compile typescript to js
• npm run watch watch for changes and compile
• npm run test perform the jest unit tests

Toolkit commands

• cdk list (ls) Lists the stacks in the app
• cdk synthesize (synth) Synthesizes and prints the CloudFormation template for the specified stack(s)
• cdk bootstrap Deploys the CDK Toolkit stack, required to deploy stacks containing assets
• cdk deploy Deploys the specified stack(s)
• cdk deploy '*' Deploys all stacks at once
• cdk destroy Destroys the specified stack(s)
• cdk destroy '*' Destroys all stacks at once
• cdk diff Compares the specified stack with the deployed stack or a local CloudFormation template
• cdk metadata Displays metadata about the specified stack
• cdk init Creates a new CDK project in the current directory from a specified template
• cdk context Manages cached context values
• cdk docs (doc) Opens the CDK API reference in your browser
• cdk doctor Checks your CDK project for potential problems

Pricing

As this cdk stack will create NAT Gateway, please refer the following link for pricing

• NAT Gateway Pricing
